| Reference | Ground overcrowding (mm) | Folded overcrowding (mm) | Platform height (mm) | Working height (mm) | Hanging height (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|
| F090160051 | 1220, 1316, 1412, 1508, 1604, 1700 | 3090 x 760 x 220 | from 1670 to 2850 (steps of 237.5 mm) | from 3670 to 4850 (steps of 237.5 mm) | from 1680 to 3770 (steps of 50 mm) | 21,70 |

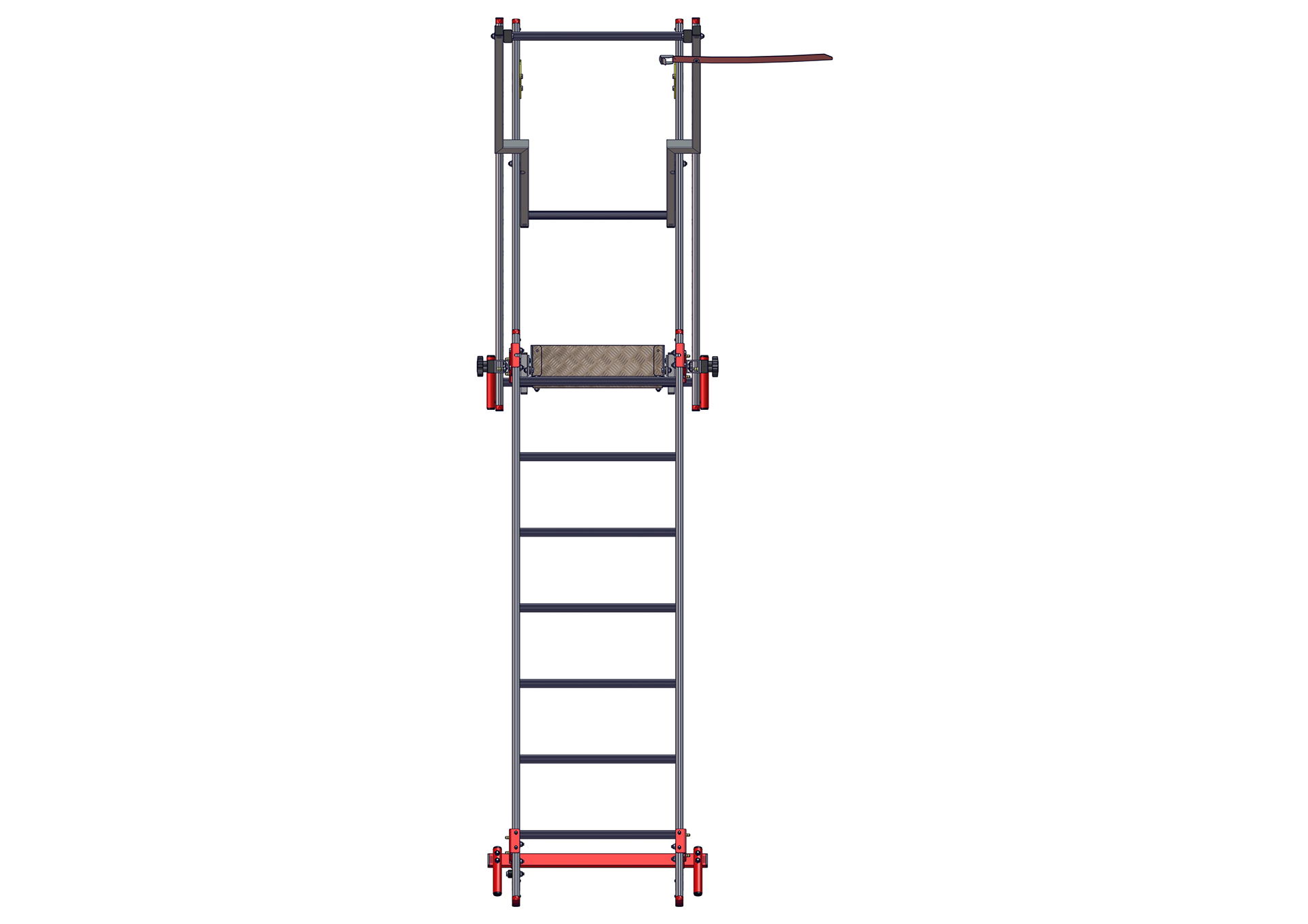

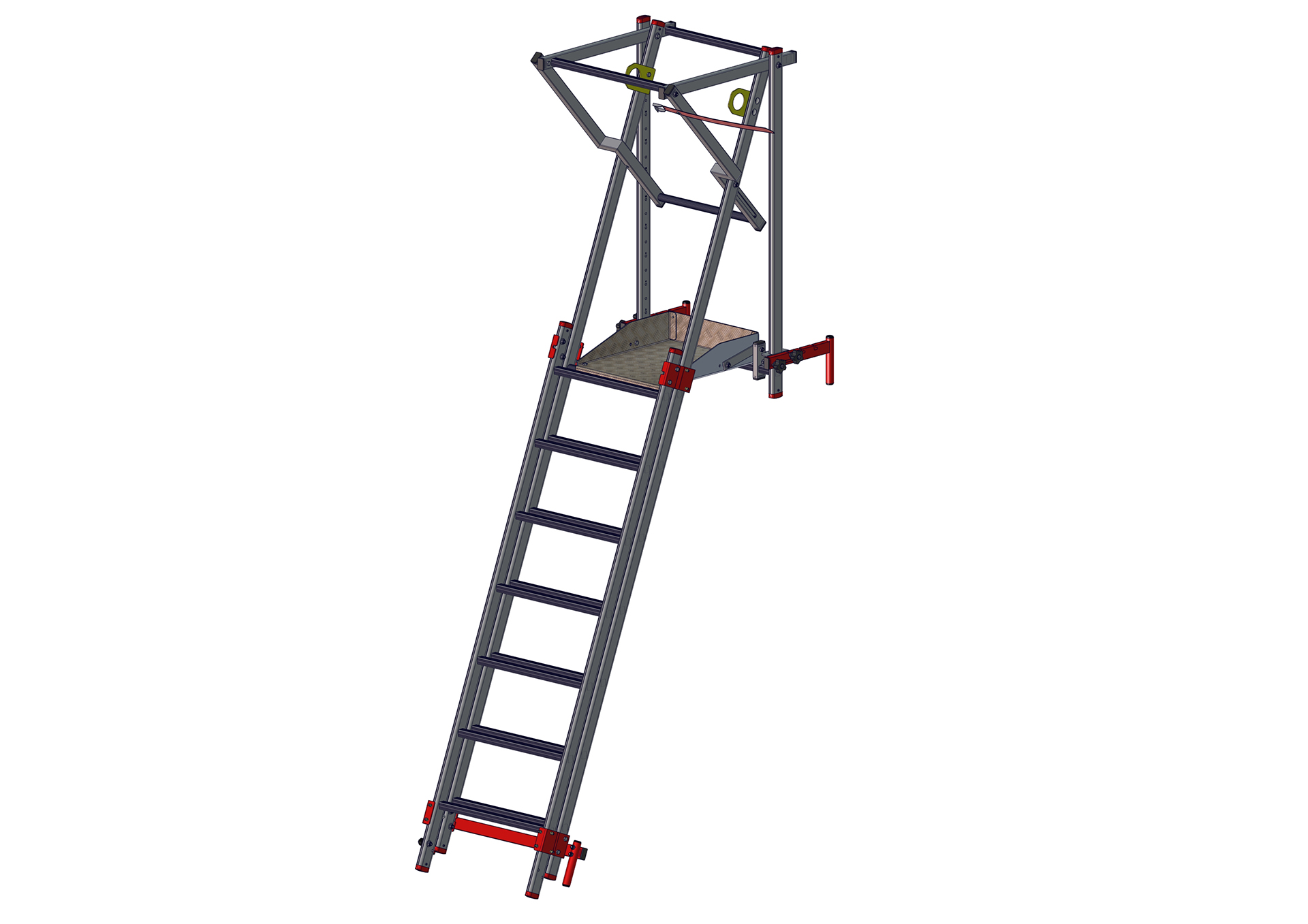

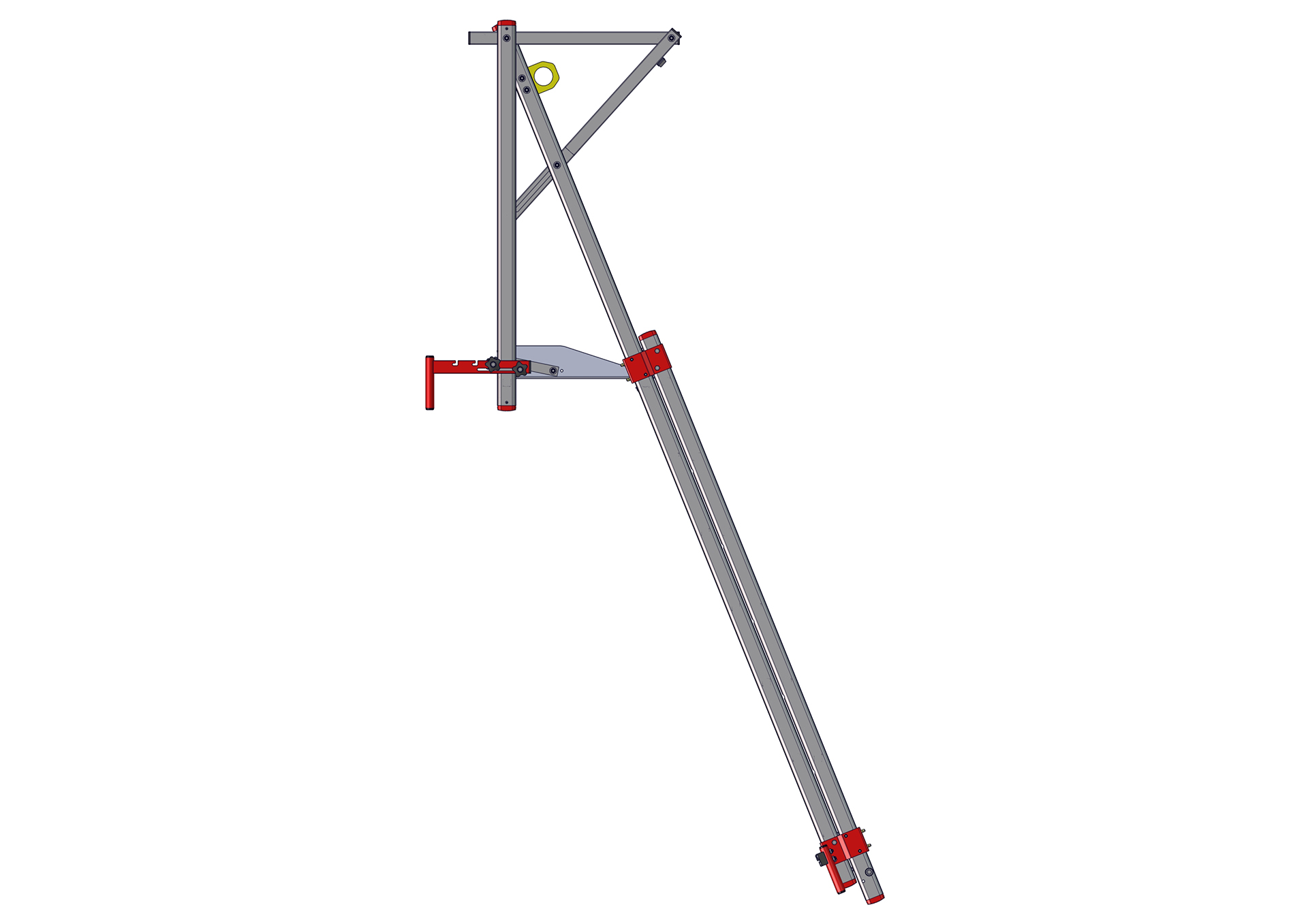

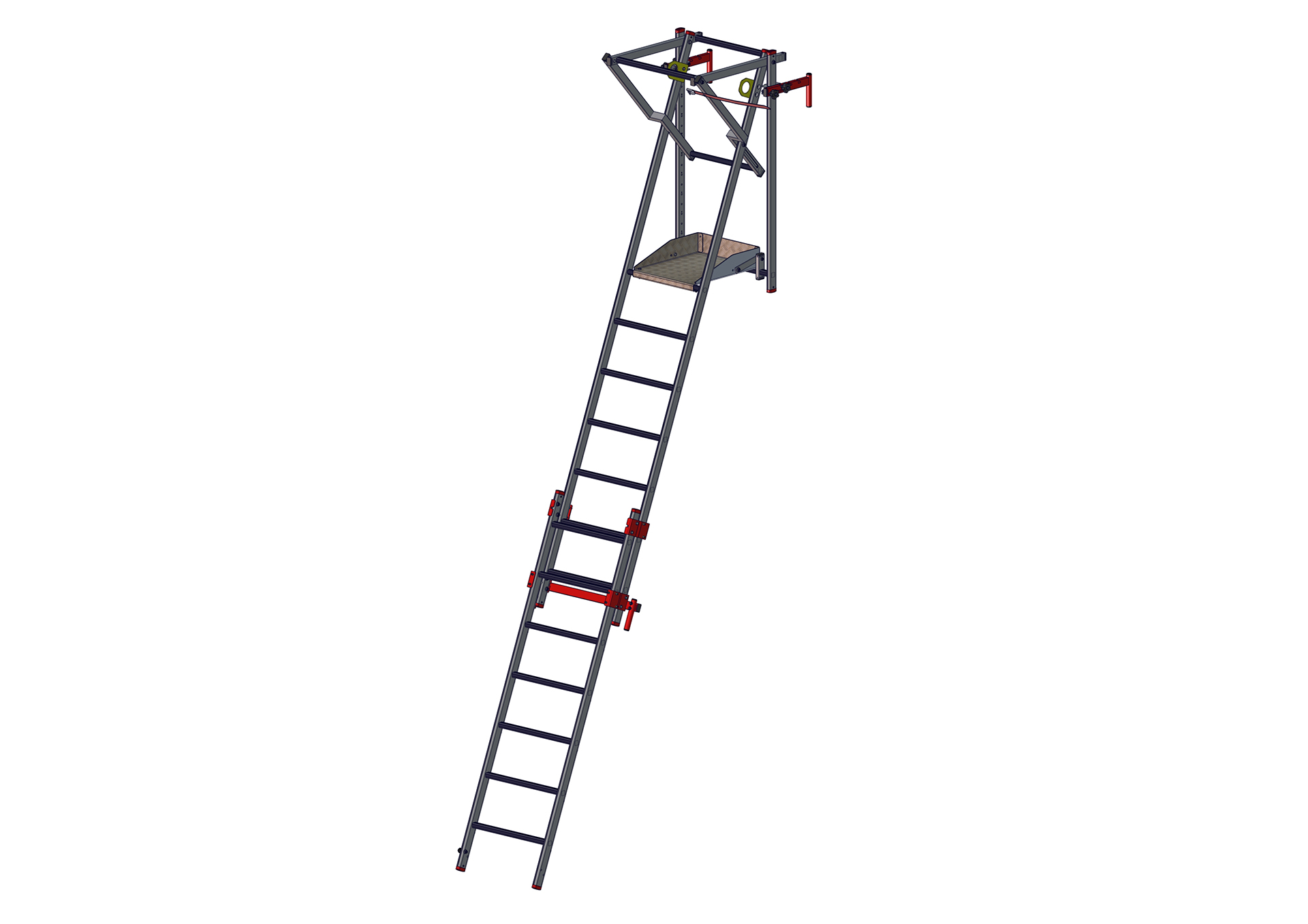

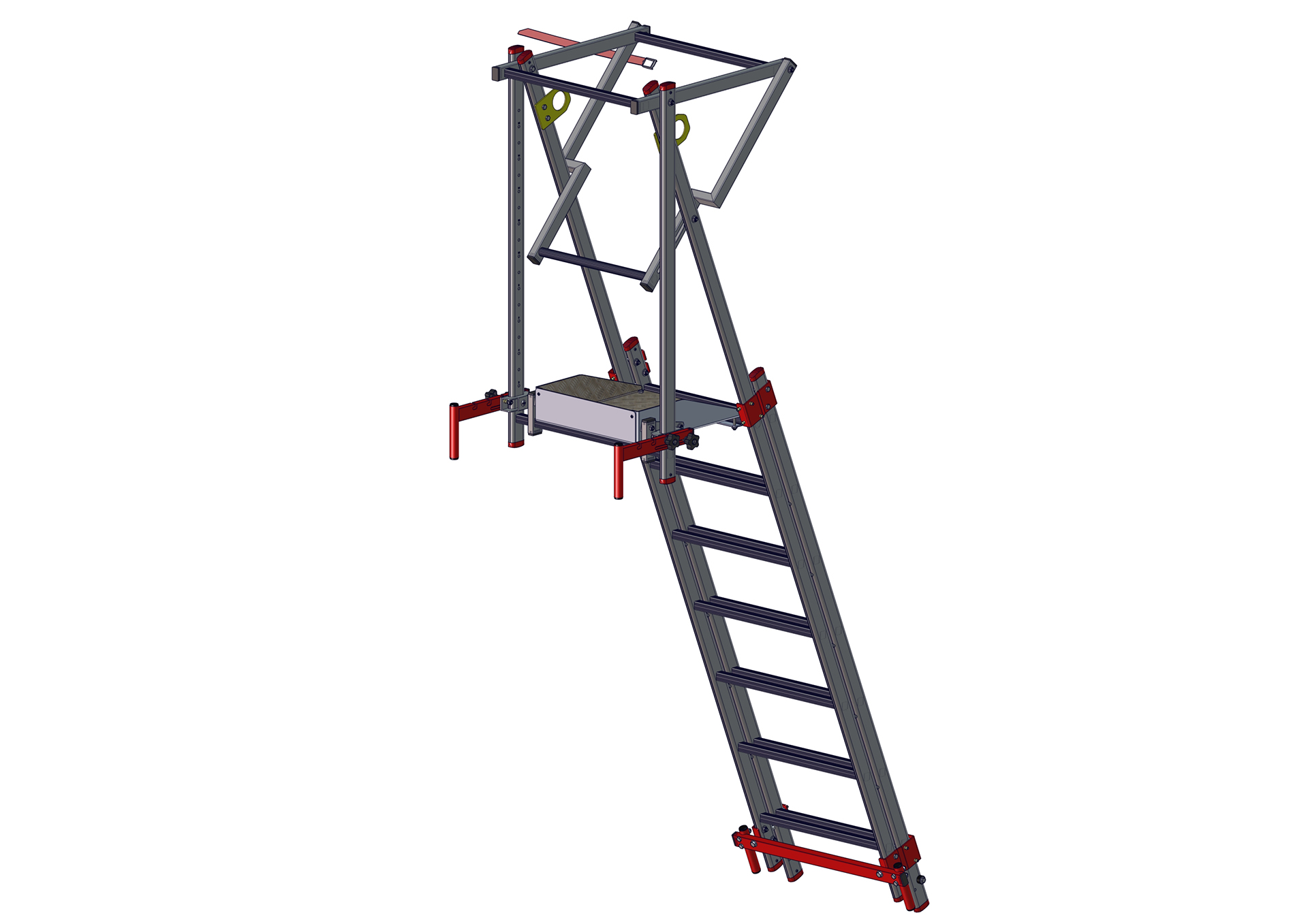

Foldable and adjustable in height platform for formwork access (PAP)

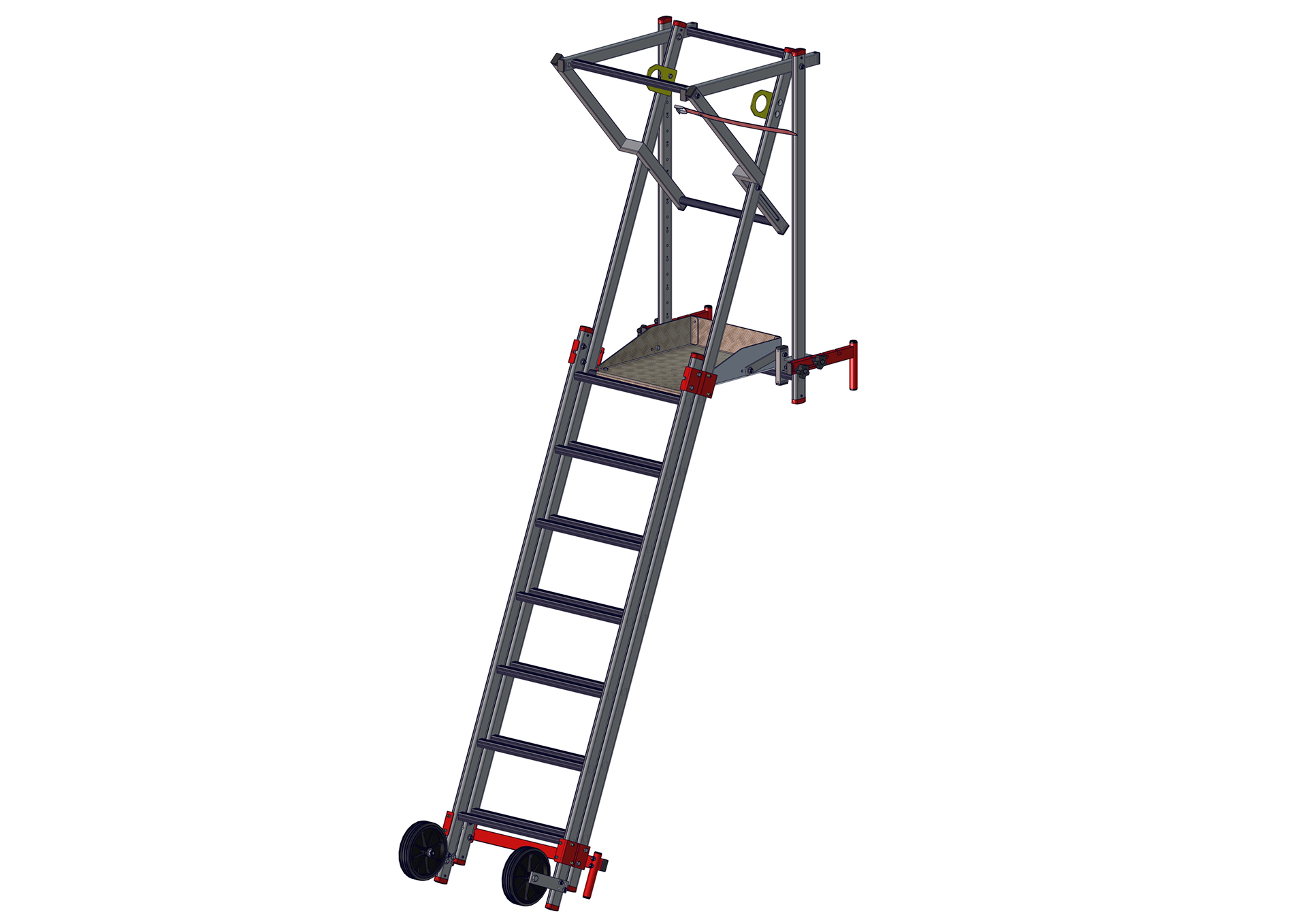

Aluminum access platform combining safety and working comfort for formwork access on sites. Available in a single height adjustable model to serve working height from 3.67 to 4.85 meters. Specially designed taking into consideration the constraints of access and installation of formwork, this access is the only completely secure. Adaptable hanging height from 1.68 to 3.77 meters – compatible thicknesses: from 180 to 320 mm – Anti-slip ribbed aluminum working platform 413 x 479 mm – Liftable guardrail at the top of the platform and fixed-guardrail – yellow lacquered crane rings – possibility to add fixed wheels with rubber tyres Ø 200 mm.Capacity of load: 150 kg – 1 person.

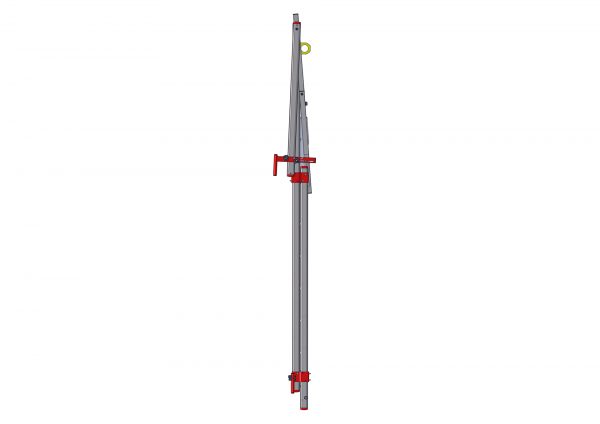

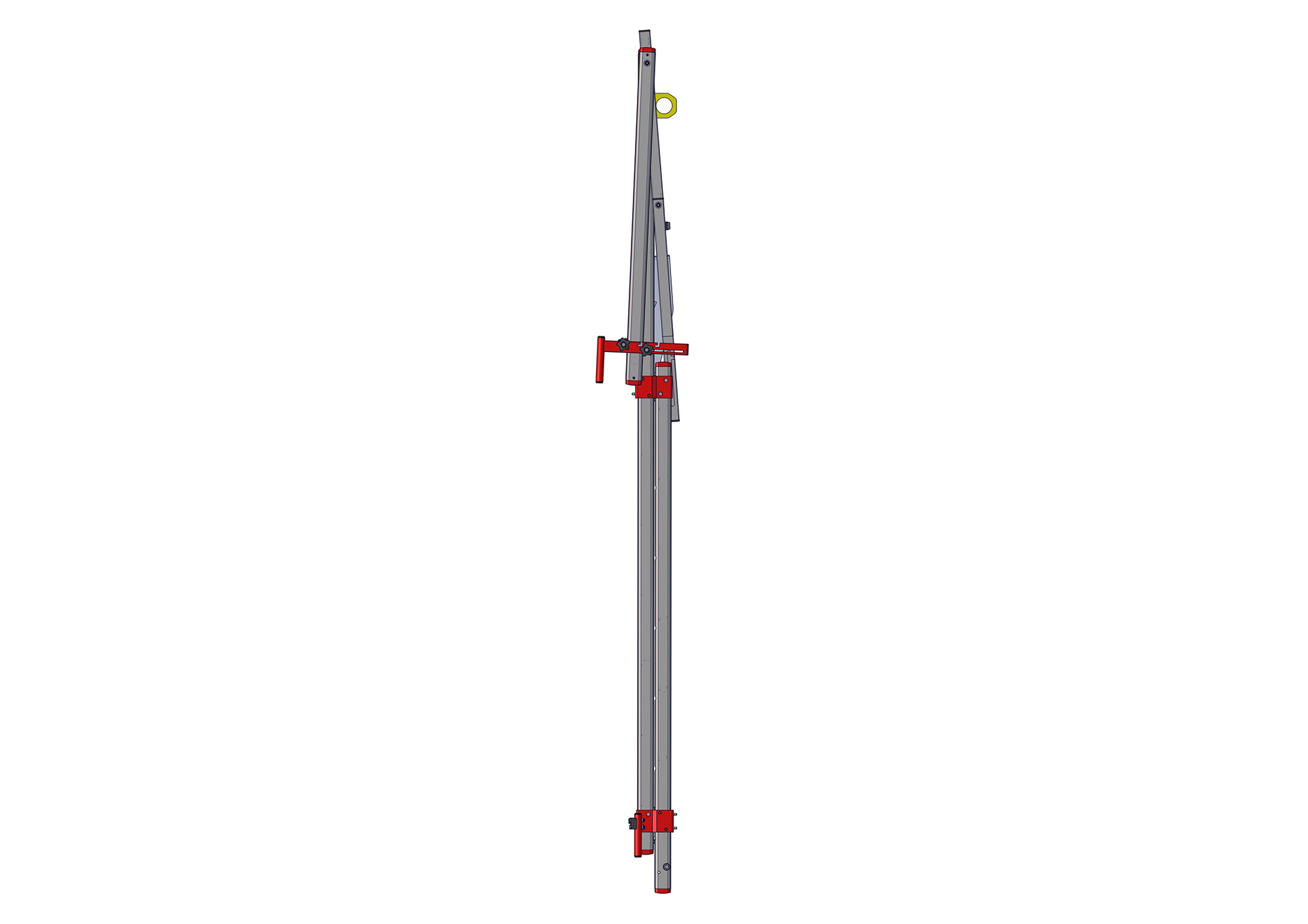

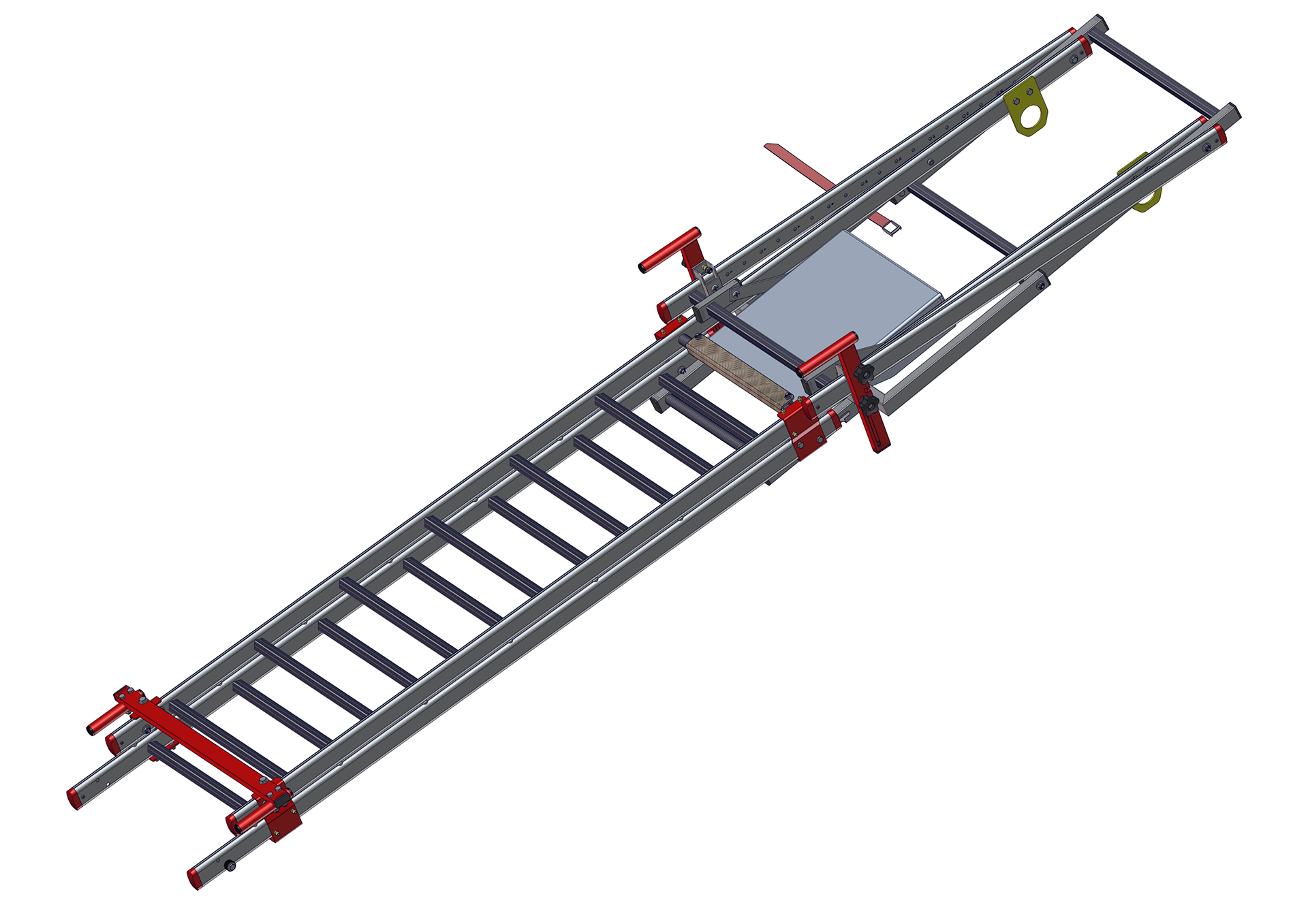

Delivered folded.
1 249,00€ Excl. taxes
Made to order
(Last update on 2024/10/17 at 06:00)
