| Reference | Number of steps | Platform height (mm) | Working height (mm) | Guardrail | Ground overcrowding stab. closed | Ground overcrowding stab. open | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| F091200005 | 2 to 4 | 500, 750, 1000 | 2500, 2750, 3000 | Articulated guardrail with chain | 1114 x 558, 1282 x 558, 1450 x 558 | NA | 19 |
| F091204005 | 2 to 4 | 500, 750, 1000 | 2500, 2750, 3000 | Articulated guardrail with double safety gate | 1114 x 558, 1282 x 558, 1450 x 558 | NA | 20,25 |
| F091200010 | 3 to 5 | 750, 1000, 1250 | 2750, 3000, 3250 | Articulated guardrail with chain | 1282 x 676, 1450 x 676, 1618 x 676 | 1282 x 1316, 1450 x 1751, 1618 x 1680 | 24,30 |
| F091204010 | 3 to 5 | 750, 1000, 1250 | 2750, 3000, 3250 | Articulated guardrail with double safety gate | 1282 x 676, 1450 x 676, 1618 x 676 | 1282 x 1316, 1450 x 1751, 1618 x 1680 | 25,55 |
| F091200015 | 4 to 7 | 1000, 1250, 1500, 1750 | 3000, 3250, 3500, 3750 | Articulated guardrail with chain | 1490 x 676, 1658 x 676, 1826 x 676, 1994 x 676 | 1490 x 1880, 1658 x 2580, 1826 x 2718, 1994 x 2654 | 28,50 |
| F091204015 | 4 to 7 | 1000, 1250, 1500, 1750 | 3000, 3250, 3500, 3750 | Articulated guardrail with double safety gate | 1490 x 676, 1658 x 676, 1826 x 676, 1994 x 676 | 1490 x 1880, 1658 x 2580, 1826 x 2718, 1994 x 2654 | 29,75 |
| F091200020 | 6 to 10 | 1500, 1750, 2000, 2250, 2500 | 3500, 3750, 4000, 4250, 4500 | Articulated guardrail with chain | 1826 x 676, 1994 x 676, 2162 x 676, 2330 x 676, 2498 x 676 | 1826 x 2308, 1994 x 3324, 2162 x 3600, 2330 x 3690, 2498 x 3652 | 34,90 |
| F091204020 | 6 to 10 | 1500, 1750, 2000, 2250, 2500 | 3500, 3750, 4000, 4250, 4500 | Articulated guardrail with double safety gate | 1826 x 676, 1994 x 676, 2162 x 676, 2330 x 676, 2498 x 676 | 1826 x 2308, 1994 x 3324, 2162 x 3600, 2330 x 3690, 2498 x 3652 | 36,15 |

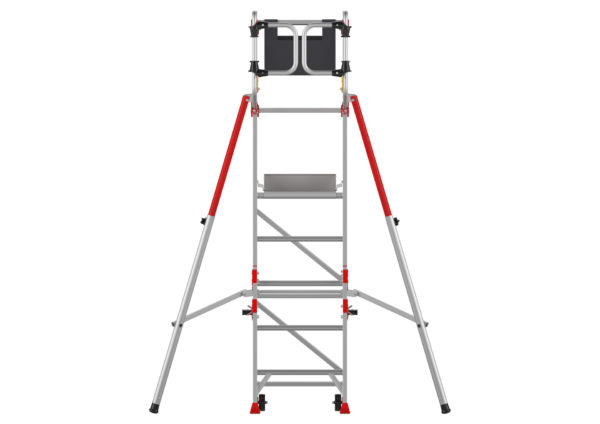

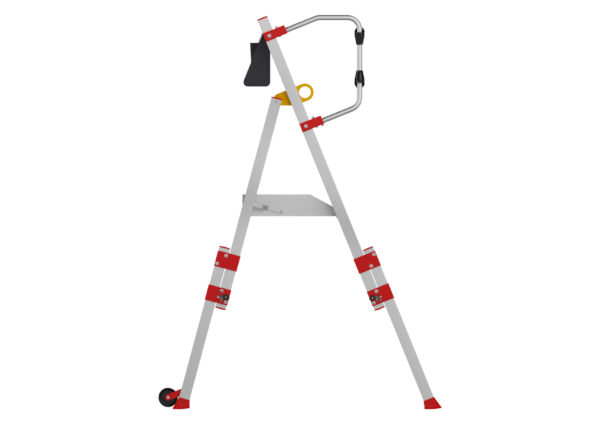

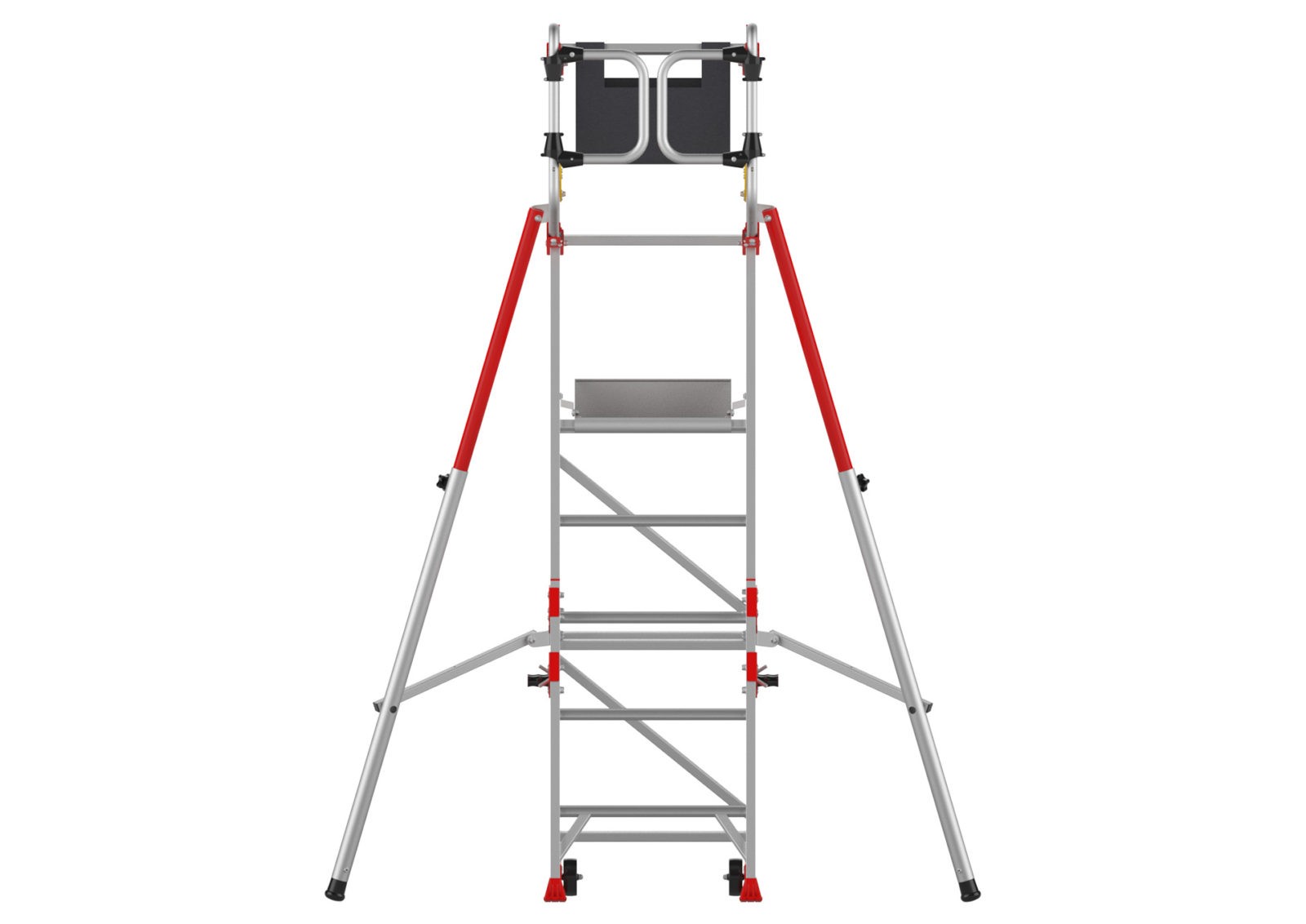

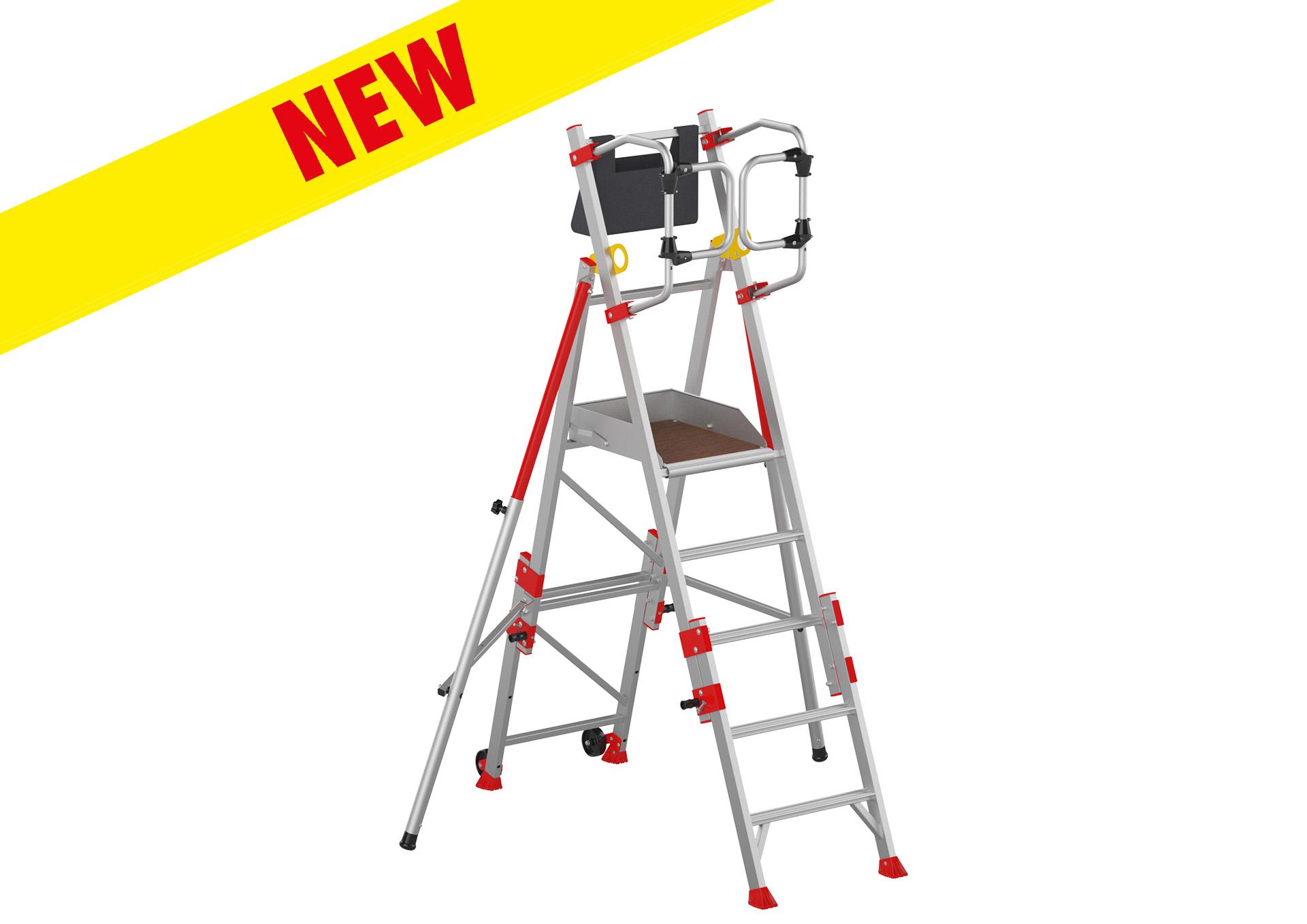

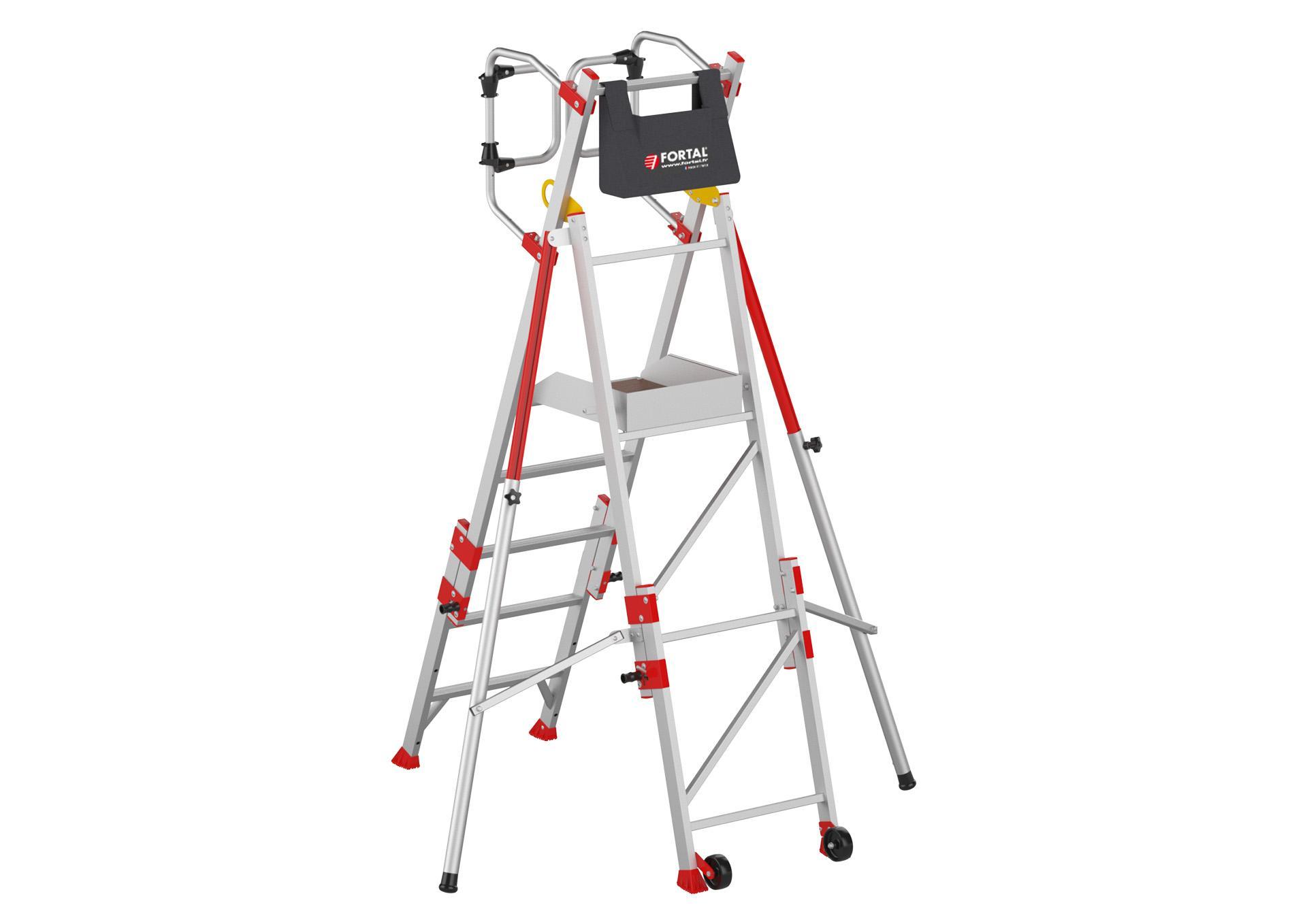

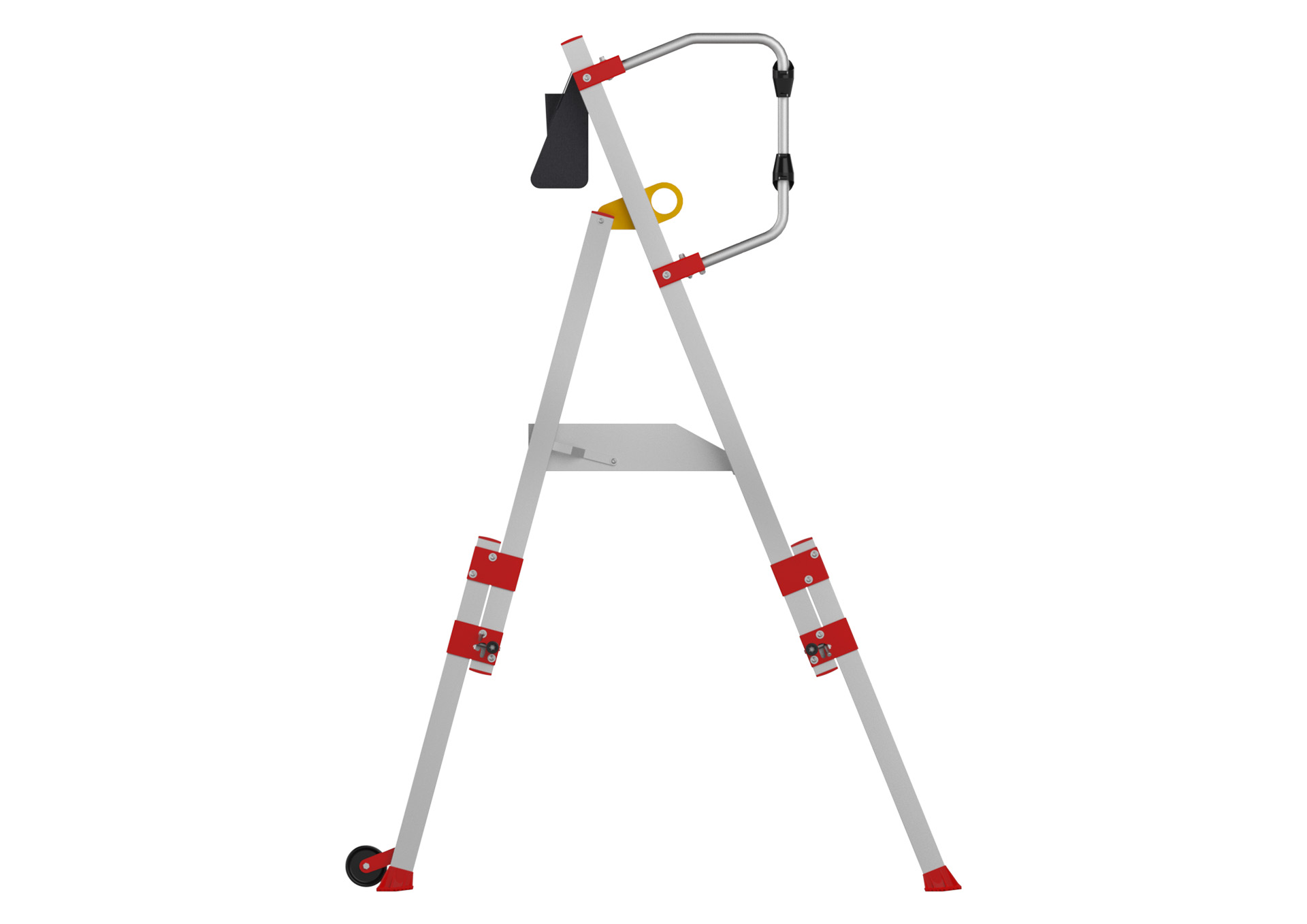

PIR ADJUST
Individual platform foldable and adjustable in height, simple access. Aluminum structure (new profile 55 x 25 mm). Simply and quickly adjust the platform to the right working height with a new, innovative and ergonomic system. Simultaneous handling and unlocking, reducing the risk of MSDs and preventing hand injuries. Easy to move due to its two wheels Ø 100 mm (models 2 to 4 steps and 3 to 5 steps) or Ø 160 mm (models 4 to 7 steps and 6 to 10 steps) non-loading in working position (special construction industry requierment) and its crane rings. Plywood working platform (thickness 9 mm), non-slip, replaceable and comfortable size: 413 x 479 mm with baseboard. Non-slip aluminium steps, depth 60 mm. Safe use with 2 folding and telescopic aluminium outriggers (except model 2 to 4 steps). Non-slip pads with an important ground contact surface for increased stability. Removable textile tool bag, replaceable. Four models available: 2 to 4 steps – 3 to 5 steps – 4 to 7 steps and 6 to 10 steps to serve working heights from 1. 50 to 4. 50 metres. Available in two versions: articulated guardrail with chain-type closure or articulated guardrail with double safety gate with automatic return closure for increased safety and working conditions.Complies with standard NF P93-352.
Load Capacity: 150 kg – 1 person.
Delivered mounted and folded.
775,00€ – 1 413,00€ Excl. taxes
- Height adjustment by an innovative and ergonomic system
- Plywood working platform replaceable and comfortable size
- Removable textile tool bag, replaceable
- Non-slip pads with an important ground contact surface
